Com Sci 222/322
Assignment #1
Winter 1999 Boolean arithmetic and circuits
Due Wednesday 13 January

In the future, we will try to hand in assignments online. Since the pictures of combinational circuits in Assignment #1 may be difficult to produce online, you may hand this one in on paper at the beginning of class on Wednesday, 13 January. Please make the formulae and graphs very neat and legible.

If you feel adventurous, you may submit your Assignment #1 by electronic mail to odonnell@cs, by the end of the day on Wednesday, 13 January. Please let the subject line be CS222 Assignment #1 or CS322 Assignment #1, appropriately. I will accept the following formats:

I must be able to view your Postscript on the CS department's Unix systems with the gv command. There are many ways to produce Postscript, including proprietary word processors. My own favorite is to use LaTeX for text and mathematics, and xfig for pictures.

Com Sci 222 and 322

  1. Use truth tables to determine whether the following Boolean expressions are equivalent:

    1. tex2html_wrap_inline56 vs. tex2html_wrap_inline58
    2. tex2html_wrap_inline60 vs. tex2html_wrap_inline62
    3. tex2html_wrap_inline64 vs. tex2html_wrap_inline66
  2. Simplify the following Boolean expressions:

    1. tex2html_wrap_inline68
    2. tex2html_wrap_inline70
    3. tex2html_wrap_inline72
    4. tex2html_wrap_inline74
  3. Draw combinational circuit graphs for the unsimplified Boolean expressions in problem 2, using and, or, inverse.
  4. Draw combinational circuit graphs for the unsimplified Boolean expressions in problem 2, using only binary multiplexors, and extra inputs with the constant values 0 and 1. This is the sort of circuit that can be implemented with mechanical relays.
  5. Draw a combinational circuit graph, using and, or, inverse, with 3 inputs. The output must be 1 if and only if precisely 1 or 3 of the inputs are 1.
  6. Draw a combinational circuit graph, using binary multiplexors plus constant 0 and 1 with the same behavior.

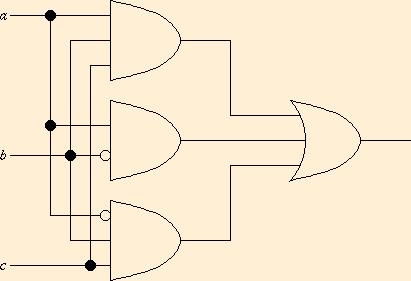

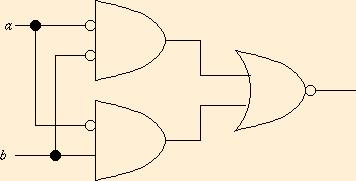

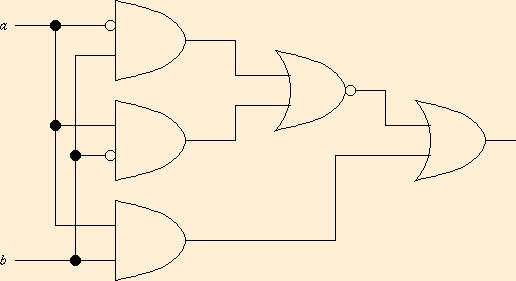

  7. Convert the following circuit graphs to Boolean expressions, and simplify:













  8. Design a latch with only 3 binary gates: 2 ands and 1 or. You will need one invertor as well. (Just for fun, speculate why the latch with 2 ands and 2 ors is more popular.)

Com Sci 322 only

  1. Conversion to sum of products form may increase the size of a Boolean expression exponentially, even after simplification. Show how to construct, for each n, a Boolean expression with n occurrences of variables whose sum of products form is exponential in n.
  2. Wires in real electronic circuits have valued that vary continuously between 0 and 1. Real circuits behave digitally when they are reasonably sure to be at 0 or 1. Let tex2html_wrap_inline102 stand for an unknown value between 0 and 1. Extend the operation tables for and, or, inverse, mux to deal with tex2html_wrap_inline102 inputs in the most sensible way.
  3. Based on your operation tables for 0, tex2html_wrap_inline102 , 1, construct a circuit with a loop that can produce output tex2html_wrap_inline102 when all inputs are 0 and 1. Such a state of a circuit is called ``metastable.'' Illustrate the behavior with graphs of the variation of inputs and output.

Acknowledgment

Several of the questions are taken from Dan Hyde's Web materials for CCSCI320 at Bucknell University.
